replacement for: Zünd Z23 / 5005560 Colex T00423 max. cutting... more

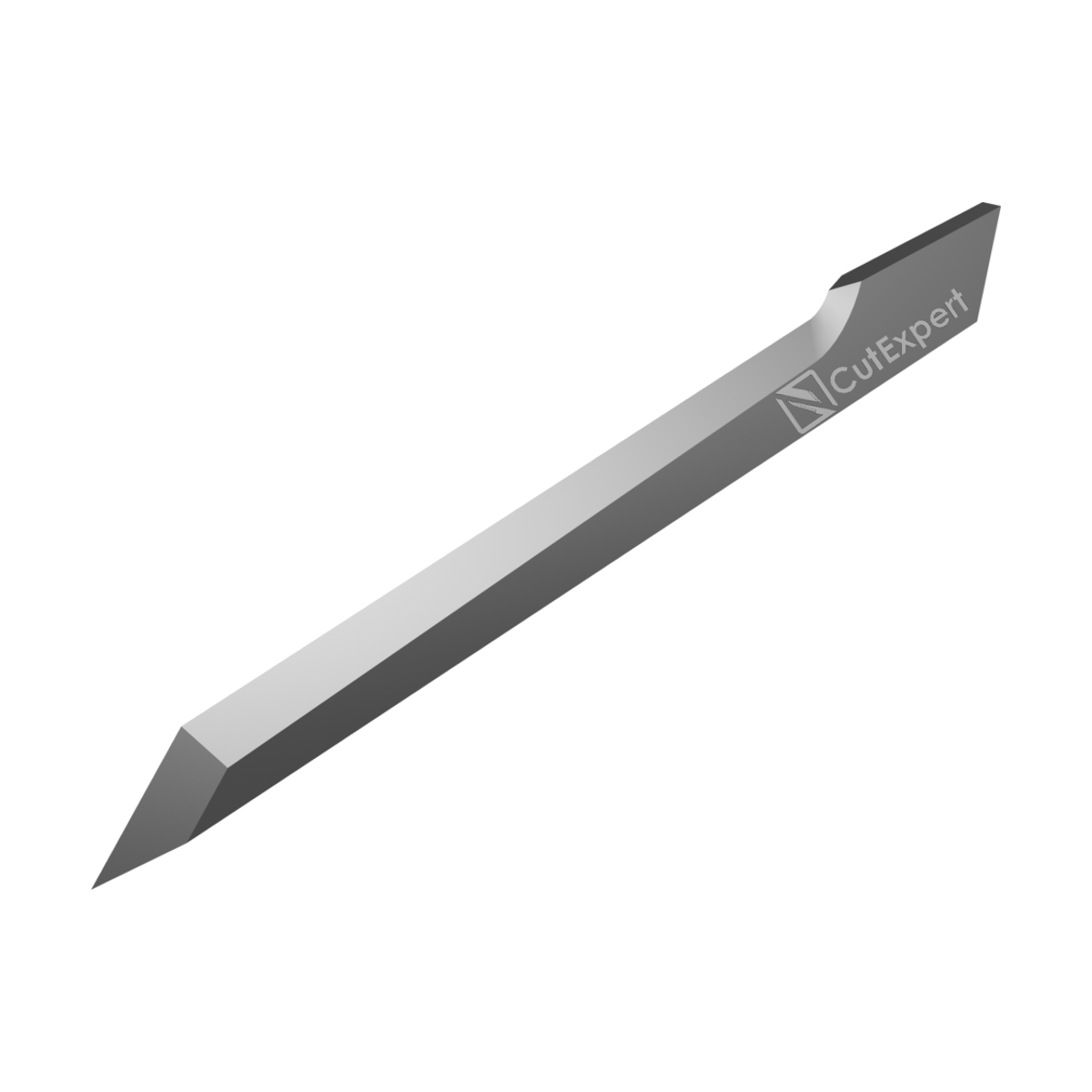

Product information "CE23"
|replacement for:||Zünd Z23 / 5005560 |
|max. cutting depth:||22 mm|
|shaft width:||4 mm|
|cutting angle:||45° + 86,5°|
|pre-cut:||1,8 + 0,1 x Tm|
|blade thickness:||0,63 mm|
|blade tip / shape:||single edge, flat|
|product material:||carbide, fine grain|
|replacement for cutter/plotter:||Zünd / Wild, Esko / Kongsberg, Colex, iEcho, Mécanuméric, Summa|
|recommended use:||magnetic foil, polycarbonate, polypropylene, PVC, vinyl, banner, display board, folding carton, paper, corrugated board, sealing material, rubber, soft-foam-board, foam material, foam rubber, fabrics, textiles, leather, carpet, sandwich panel, twin-wall sheet, honeycomb|
